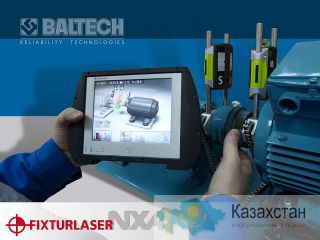

Alignment of cardan shafts Fixturlaser Offset NXA Pro.
Alignment of cardan shafts with the help of Fixturlaser Offset NXA Pro is a very simple, easy and effective procedure. Traditional methods of alignment, such as rulers, the indicators with external weights, roulette and mechanical levels can not provide the required level of accuracy. If the car breaks down on the propeller shaft, the final cost of downtime will be enormous. In this case, there is a great risk of failure of the entire machine.
Many professionals mistakenly think that compensates for any misalignment cardan drive, but it is not. Propeller shafts, as well as any car made outside walls also need to be properly installed, the center line, as well as trees that are located in the car. For propeller shaft with its crossbar, ball bearing fans are not important value, but the angle values are not allowed. Vibration analysis and expertise BALTECH proved that it is better to use a system Fixturlaser Offset NXA Pro.
Alignment of shafting.
Shafts are three or more machines with rotating shafts, connected to each other couplings in series (one after another), for example, drive - gear - driven unit. When centering shafts with conventional laser alignment system you produce each machine and, after calculating, adjusting it. This is a challenge to the risk to make a lot of errors. Using Fixturlaser NXA Pro, you can perform all the measurements, then the system will calculate and give you a proposal with which you can choose the car that you would like to see how a fixed (initial or baseline calibration). BALTECH – delivers a new system with centering function Gyroscope: 6-Axis MEMS Inertial Motion Sensor with drift compensation and automatic field calibration. Fixturlaser NXA Pro - Reliability technologies.
